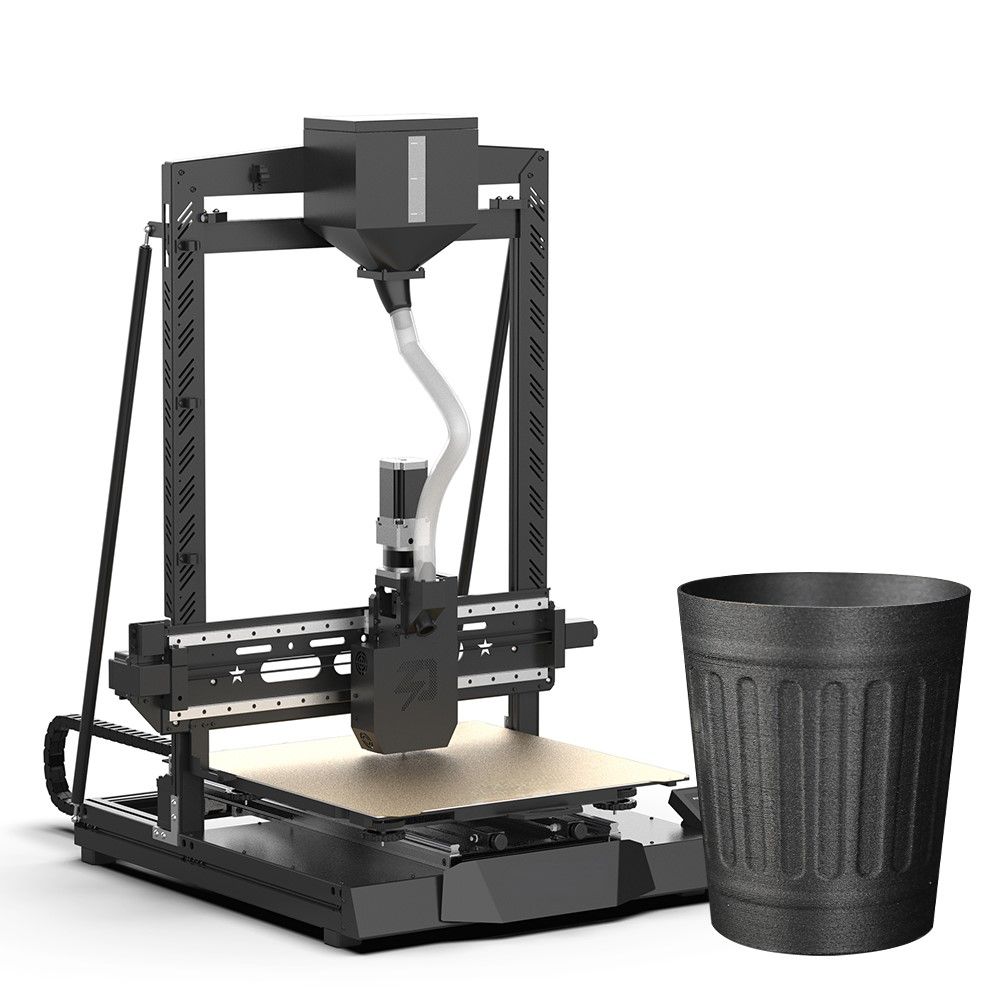

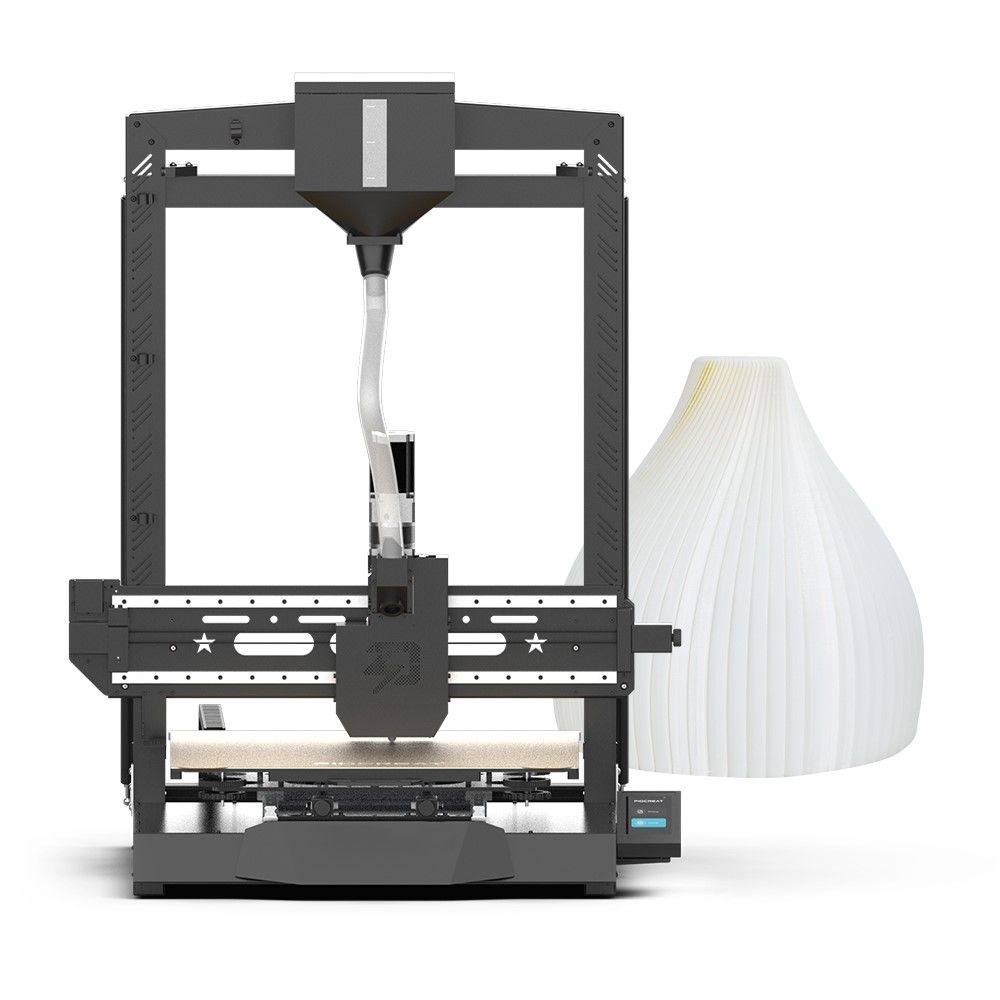

Tsingsley G5Ultra 3D Printing

The Tsingsley G5Ultra offers a new experience of industrial-grade FGF (Fused Granulate Fabrication) 3D printing. It embodies Green Innovation and supports a Sustainable Future by enabling 3D printing with recycled materials.

The use of pellets made from renewable plastics, recycled flakes, or regrind materials helps move closer to achieving a circular economy.

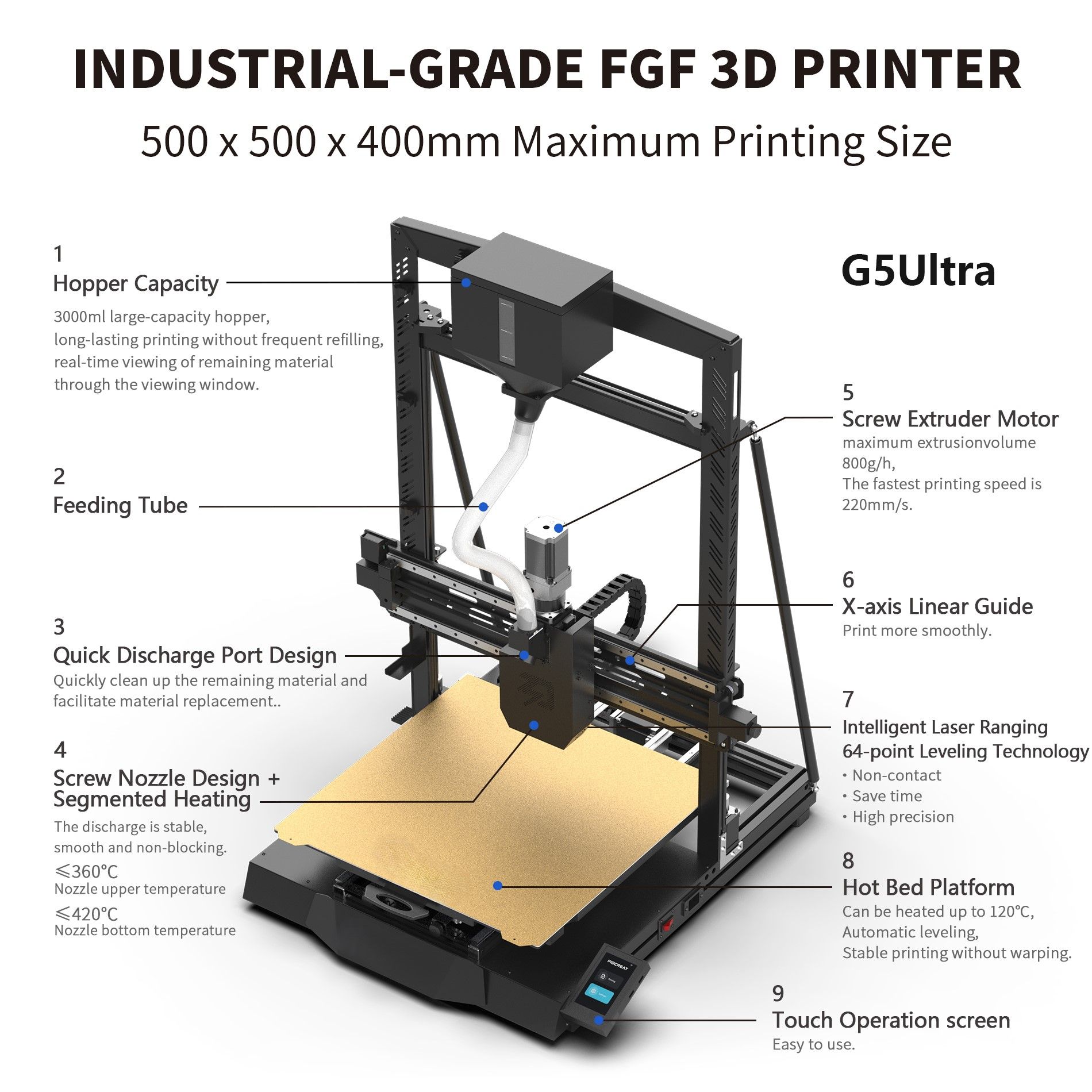

II. Key Capabilities and Performance

The Tsingsley G5Ultra is designed for high-performance industrial use, emphasizing efficiency, versatility, and reliability.

Material and Cost Efficiency

Supports Multiple Materials :
Accepts granular materials (pellets) with a diameter of 2–5 mm and a melting point below 420°C.

Versatile Material Compatibility :
Compatible with a wide range of materials, including:
PLA, PC, ABS, PETG, PETG-GF, PP, TPU, PA-CF, ABS-CF, PC-CF, and various modified and composite materials.

Extrusion and Speed :

•  Maximum Printing Speed: Up to 220 mm/s.
• Extrusion System:

Features a self-developed, new-generation screw extrusion nozzle with strong extrusion strength.

• Maximum Nozzle Temperature: 420°C (Upper: 360°C / Lower: 420°C).
• Nozzle Options: Supports nozzle diameters from 0.4 mm to 3.0 mm.

Volume and Capacity

Large Build Volume :

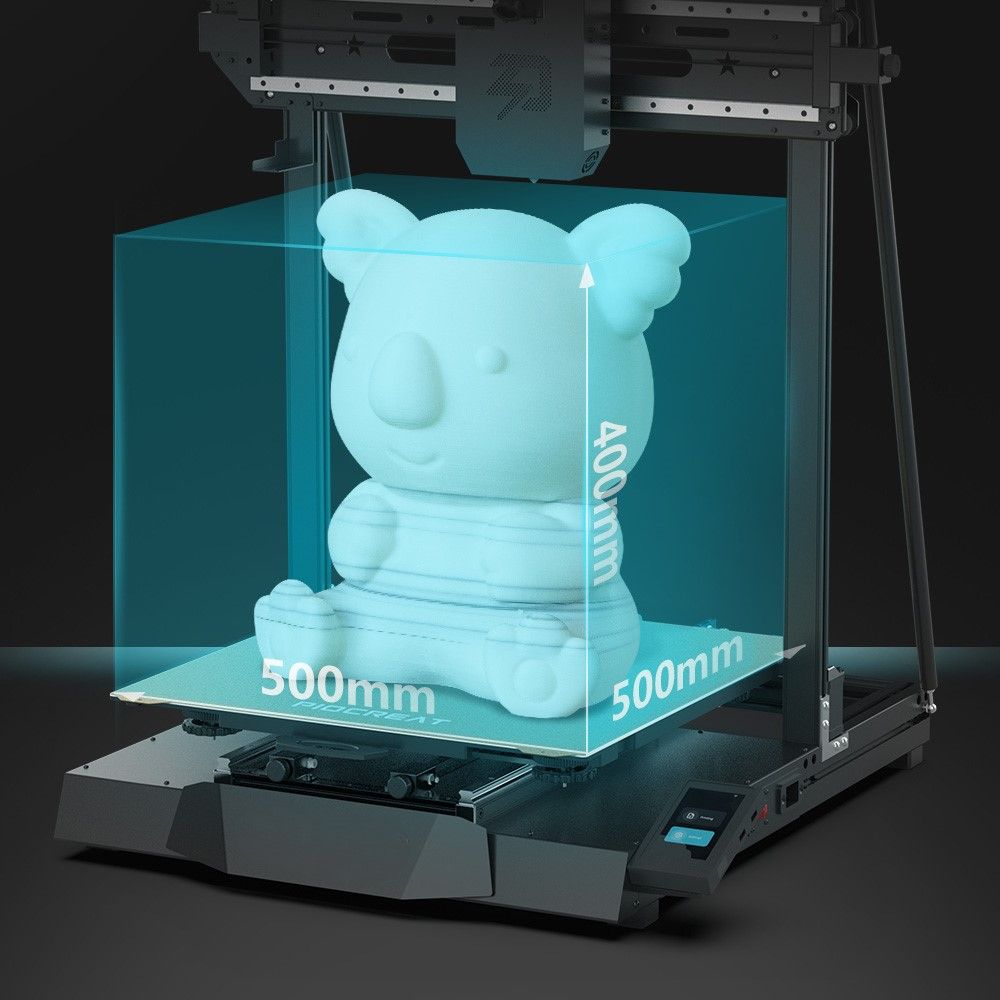

Capable of 100L large-volume printing with a maximum print size of 500 × 500 × 400 mm.

Hopper Capacity :
Features a large hopper with a capacity of 6,500 ml.

III. Reliability and Control

Reliability

High Success Rate :
Ensures a printing success rate of over 95% with material shortage alarm and material cut-off continue printing functionality.

Intelligent Leveling

Precision Leveling :
Uses Intelligent Laser Ranging 64-point Leveling Technology (non-contact measurement) for fast and accurate bed leveling.

Software Compatibility :

Compatible with :

• Tsingsley Slicer.
• Cura.
• Simplify3D.
