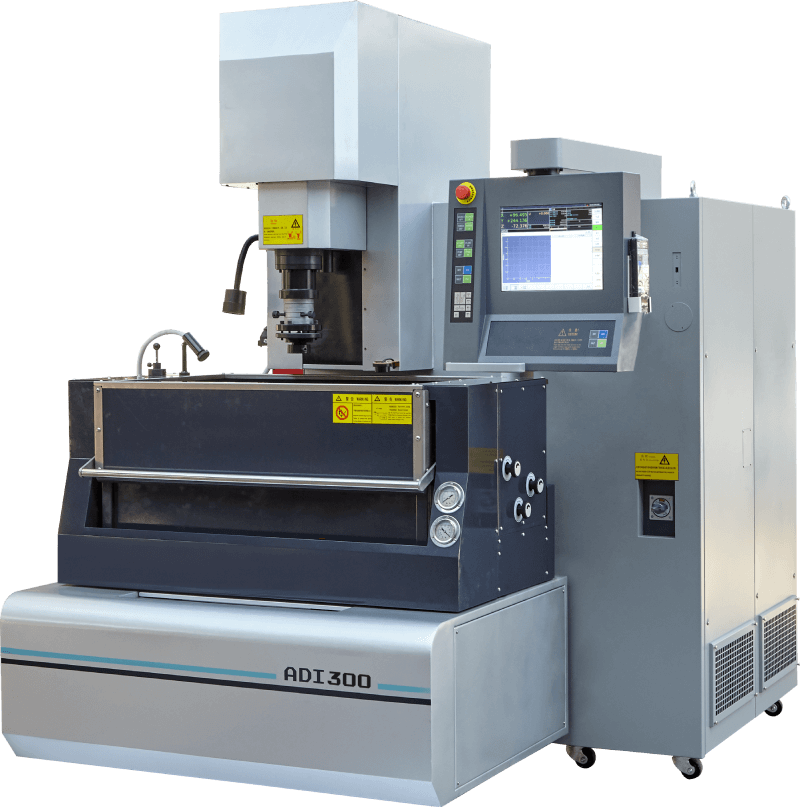

415Product Description:
|
Item |
Unit |
ADI300 |
ADI450 |
|
Travel |
|
|
|
|
X Axis travel |
mm |
300 |
452 |
|
Y Axis travel |
mm |
212 |
300 |
|
Z Axis travel |
mm |
272 |
272 |
|
Work Area |
|
|
|
|
Working table dimension |
mm |
600 x 400 |
600 x 400 |
|
Distance from spindle end to working table |
mm |
530 |
580 |
|
Dimension of working tank on table |
mm |
994 x 604 x 405 |
1084 x 597 x 435 |
|
Load Capacity & Fluid |
|
|
|
|
Max weight of workpiece |
kg |
400 |
450 |
|
Max weight of electrode |
kg |
25 |
25 |
|
Highest oil level |
mm |
250 |
300 |
|
Capacity of oil tank |
L |
400 |
600 |
|
Performance |
|
|
|
|
Max machining current |
A |
≤50 |
≤50 |
|
Best surface finish |
μm |
≤0.1 |
≤0.1 |
|
Min. electrode wear |
% |
≤0.1 |
≤0.1 |
|
Max machining speed |
mm/min |
≥500 |
≥500 |
|
Control & Interface |
|
|
|
|
Control axes |
/ |
6-axis simultaneous control |
6-axis simultaneous control |
|
Display |
/ |
15" touch screen (TFT-LCD) |
15" touch screen (TFT-LCD) |
|
Physical Data |
|
|
|
|
Door open type |
/ |
manual lifting door |
manual lifting door |
|
Weight of machine |
kg |
2300 |
3100 |
|
Dimension of machine |
mm |
1992 x 2119 x 2240 |
2024 x 2590 x 2355 |
