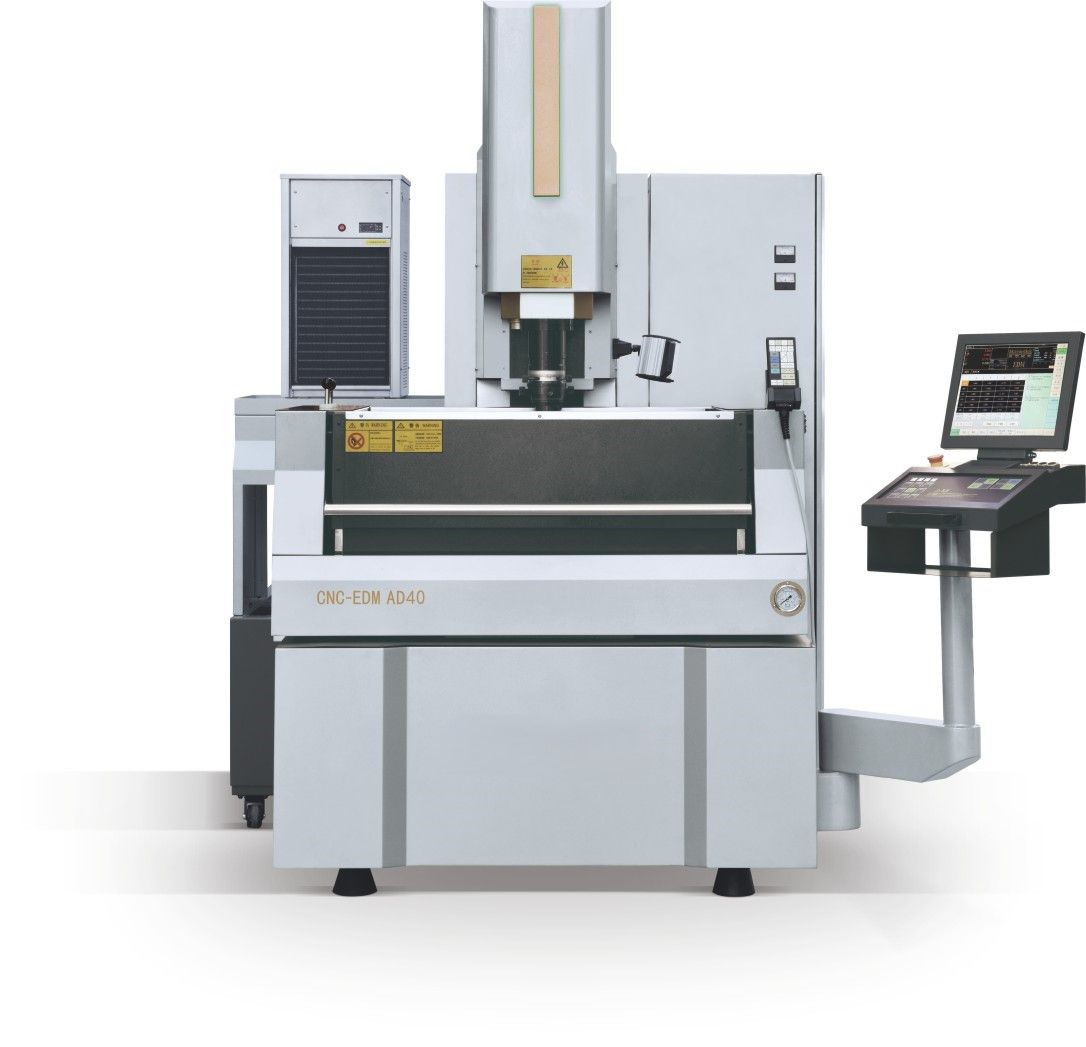

High Precision Mirror EDM Machine
An EDM machine with mirror finishing, hard alloy, graphite processing efficiency and the most cost-effective.
High precision mirror EDM machine :
- Windows control system (multilingual).
- Network transmission port.
- PUMA ultra-precision mirror discharge circuit.
- 60 workpiece coordinate systems.
- Spark oil constant temperature device.
Special option :
- C axis.
- 4-position ATC electrode library.
- Stabilizer.
- Quick Chuck.
|
Item |
Unit |
AD30 |
AD40 |
AD45 |
|
Worktable size (L x W) |
mm |
600 x 400 |
700 x 450 |
700 x 450 |
|
Liquid tank internal size (L x W x H) |
mm |
900 x 550 x 400 |
950 x 600 x 400 |
950 x 600 x 400 |
|
Liquid level adjustment range |
mm |
48-198 |
110-292 |
110-300 |
|
Max. capacity of the liquid tank |
L |
150 |
180 |
200 |
|
X, Y, Z axis travel |
mm |
300 x 210 x 270 |
400 x 300 x 300 |
450 x 350 x 300 |
|
Max. electrode weight |
kg |
50 |
50 |
50 |
|
Max. workpiece size |
mm |
780 x 500 x 250 |
820 x 550 x 280 |
880 x 550 x 300 |
|
Max. Workpiece weight |
kg |
500 |
600 |
700 |
|
The Max. and Min. distance from spindle end plate to work table plate |
mm |
295-565 |
330-630 |
330-630 |
|
Positioning accuracy (JIS standard) |
5µm/Arbitrarily 300mm |
|||
|
Repeat accuracy (JIS standard) |
µm |
2 |
2 |
2 |
|
Area covered (L x W) |
mm |
2000 x 2100 |
2100 x 2200 |
2200 x 2300 |
|
Machine weight |
kg |
2200 |
3500 |
3800 |
|
Reservoir tank volume |
L |
400 |
400 |
400 |
|
Processing liquid filter type |
Switching Cartridge Filter |
|||
|
NC pulsed power supply unit |
A40 |
A40 |
A40 |
|
|
Max. Current |
A |
40 |
40 |
40 |
|
Total Input power |
KVA |
9 |
9 |
9 |
|
Input Supply |
380V(China) |
|||
|
Best surface roughness |
Ra 0.1 µm |
|||
|
Min. electrode wear |
0.1% |
|||
|
Max. productivity |
Copper hit steel 500 mm²/min, Graphite hit steel 1000 mm²/min |
|||
|
Standard process |
Copper/steel, fine copper/steel, graphite/steel, copper/tungsten/steel, fine copper tungsten/steel, steel/steel, copper/aluminium, copper, copper/aluminium, graphite/heat resistant alloys, graphite/titanium, copper/copper |
|||
|
Interpolation type |
Linear, circular, spiral |
|||
|
Each axis compensation |
Each axis respectively stop-error compensation, clearance compensation |
|||
|
Max. number of controlled axis |
Three axes linkage (standard), Four simultaneous axes (optional) |
|||
|
Each axis resolution |
µm |
0.4 |
||
|
Min. drive unit |
µm |
1 |
||
|
Input type |
Touch screen, U disk/Net work transmission |
|||
|
Display type |
15" LCD screen (TFT-LCD) |
|||
|
Manual control box |
Standard point move (multi-stage switching) |
|||
|
Position command type |
Absolute, incremental dual purpose |
