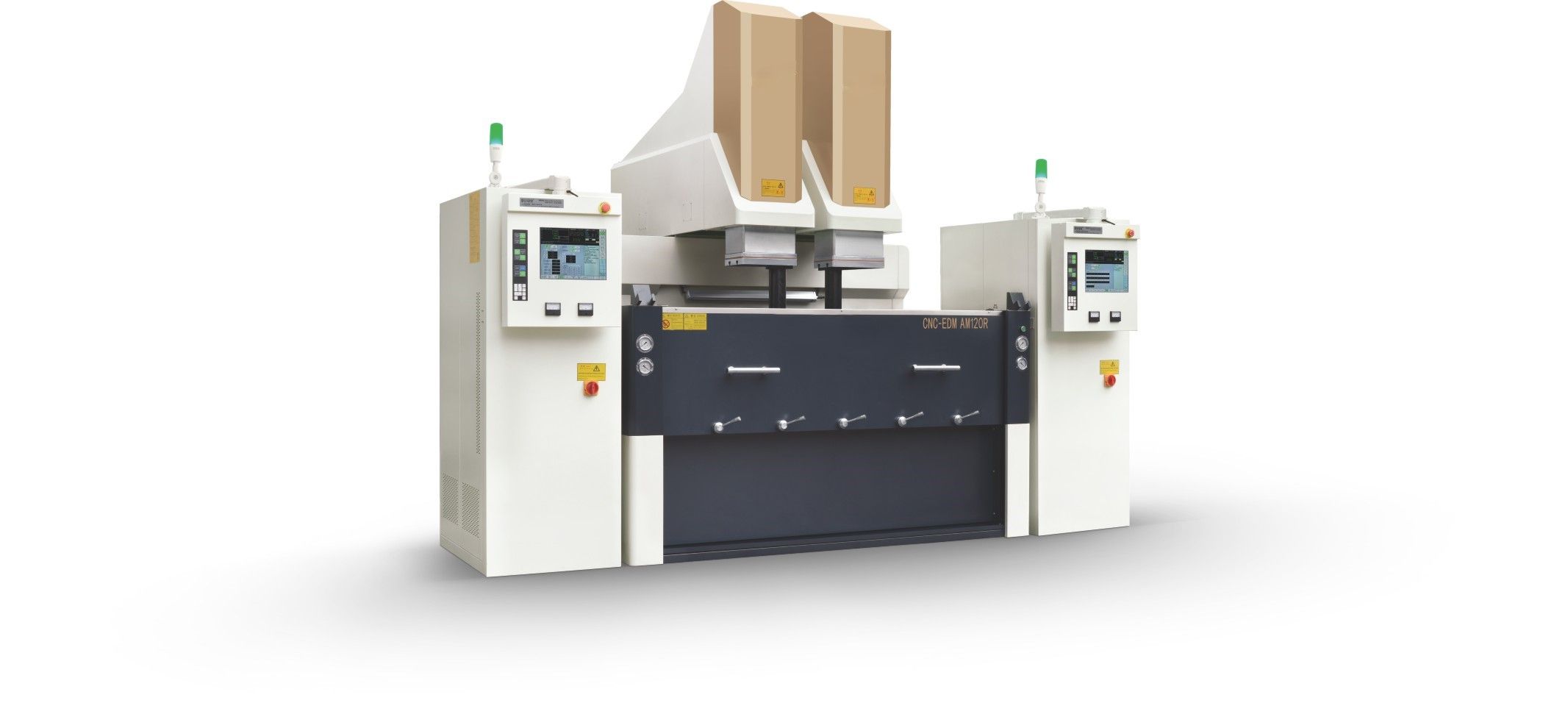

Precision Double Heads Cow Head EDM Machine Series
Features :
High precision double heads cow head EDM machine
- Windows control system (multilingual).
- Network transmission port.
- PIKA ultra-precision mirror discharge circuit.
- 60 workpiece coordinate systems.
Special Option :
- Spark oil constant temperature device
- Electric control box thermostat
- Stabilizer
- Quick Chuck
|
Item |
Unit |
AM120R |
AM130R |
AM150R |
AM180R |
|
Table size (length x width) |
mm |
1300x600 |
1500x750 |
1800x900 |
2000x1000 |
|
X, Y, Z axis travel |
mm |
700x500x400 |
800x600x450 |
1000x700x500 |
1200x800x600 |
|
Liquid tank internal size (L x W x H) |
mm |
2000x1000x600 |
2500x1200x600 |
3000x1600x650 |
3500x1800x650 |
|
Maximum electrode weight |
kg |
200 (single head stage) |
400 (single head stage) |
400 (single head stage) |
400 (single head stage) |
|
Maximum workpiece weight |
kg |
4500 |
7500 |
8000 |
10000 |
|
The Max. and Min. distance from worktable surface to electrode plate |
mm |
500/900 |
600/1050 |
600/1100 |
630/1230 |
|
Machine weight |
kg |
8000 |
9000 |
12000 |
14000 |
|
Reservoir tank volume |
L |
1300 |
1250 |
1400 |
1400 |
|
Total input power |
KVA |
9+9 |
13+13 |
13+13 |
13+13 |
|
Dimensions (length x width x height) |
mm |
3700x3100x2700 |
3400x3390x2880 |
3900x3600x3300 |
5200x4300x3600 |
|
Input power |
V |
220V/380V(China) |
|||
|
CNC power supply |
A |
A50/A100 |
|||
|
Maximum machining current |
A |
50/100 |
|||
|
Best surface roughness |
Ra0.2 µm |
||||
|
Minimum electrode loss |
0.1% |
||||
|
Highest productivity |
Copper hit steel 500 mm²/min, Graphite hit steel 1030 mm²/min |
||||
|
Standard process |
Copper/steel, graphite/steel, fine graphite/steel, copper-tungsten alloy/hard alloy, copper-tungsten alloy/steel, red copper/red copper |
||||
|
Programming expert system |
Automatically generate machining programs |
||||
|
Interpolation type |
Linear, circular, spiral |
||||
|
Compensation for each axis |
Each axis respectively step error compensation, clearance compensation |
||||
|
Maximum number of controlled axes |
Three axes linkage |
||||
|
Minimum drive unit |
µm |
1 |
|||
|
Input type |
Touch screen, U disk/Net work transmission |
||||
|
Display type |
15" LCD screen (TFT-LCD) |
||||
|
Remote control box (hand control box) |
Standard point move (multistage switching) |
||||
|
Drive mode |
Fully digital AC servo |
||||
|
Standard accessories (see packing list for details) |
Machine sizing block, adjustable fixture, machine tool light, filter, liquid level controller, fuse, tool box, instruction manual, grease gun, etc. |
